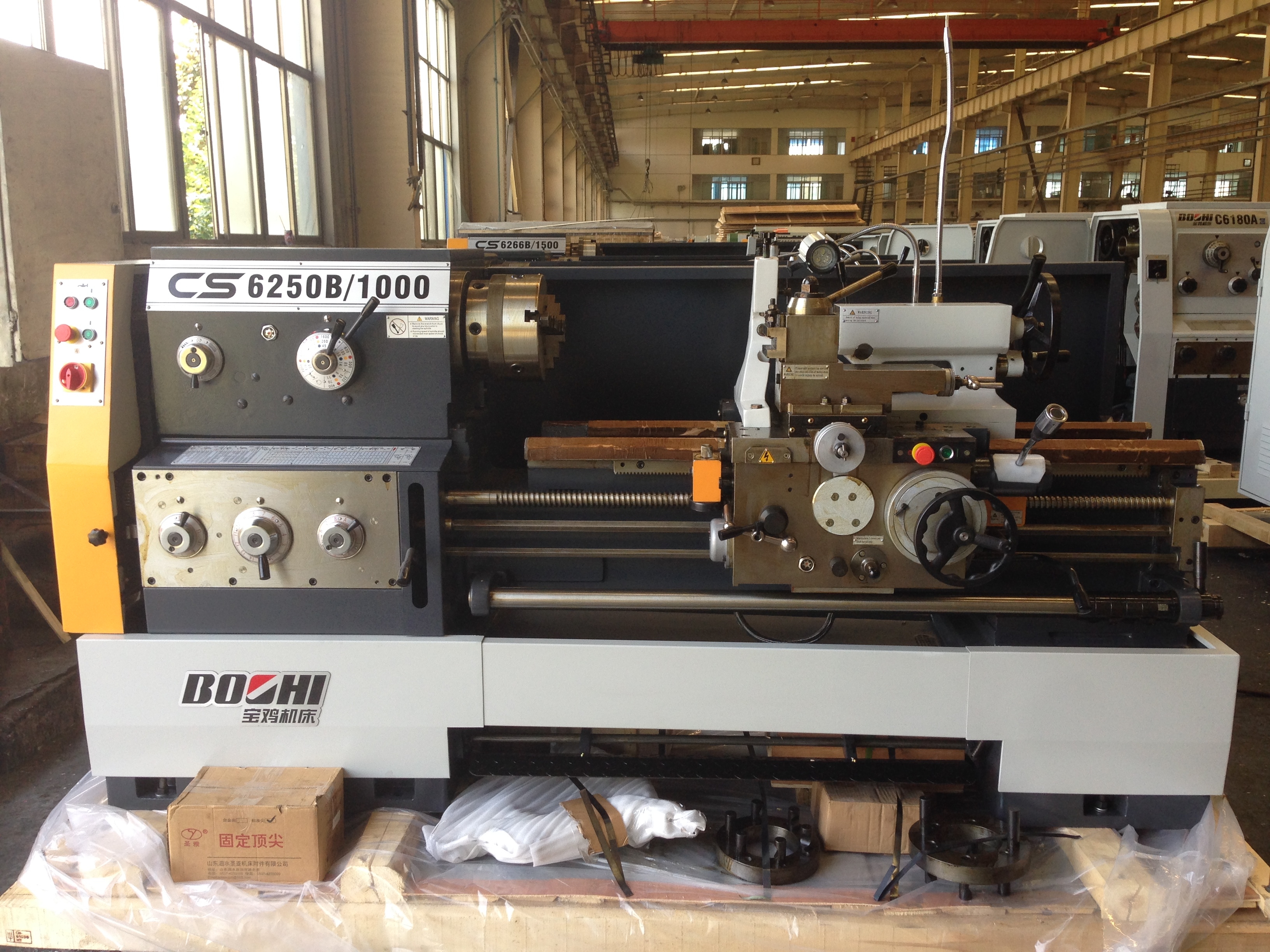

CS61(2)50B/CS61(2)66B

CS61(2)50BCS61(2)66B watch video

Product Description：

—Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;

—Threading Inch, Metric, Module and D.P.;

—Perform drilling, boring and groove broaching;

—Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;

—Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;

—There are hand brake and foot brake for users to choose;

—These series lathes operate on power supply of different voltages (220V、380V、420V) and different frequencies (50Hz、60Hz).

Technical Specifications：

ITEMS		UNIT	CS6150B	CS6250B		CS6166B	CS6266B
Capacity	Max. swing dia. over bed	mm	φ500			φ660
	Max. swing dia. over toolpost	mm	φ300			φ420
	Max. swing dia. in gap	mm		φ710			φ870
	Length in gap	mm		240			240
	Max. distance between centers	mm	1000/1500/2000//3000
	Max. machining length	mm	950/1450/1950/2950
Spindle	Spindle bore diameter	mm	φ82
	Taper of spindle bore		φ 90 1:20
	Type of spindle nose		ISO 702/Ⅱ No.8
	Spindle speed	r/min	24 steps 9-1600
Feed and thread	Max. travel of upper toolpost	mm	145
	Max. travel of lower toolpost	mm	320		310
	Tool section	mm	25×25
	X-axis feeding range	mm/r	93kinds 0.012-2.73
	Z-axis feeding range	mm/r	93kinds 0.028-6.43
	Metric threads	mm	48 kinds 0.5-224
	Inch threads	t.p.i	46 kinds 72-1/8
	Module threads	πmm	42 kinds 0.5-112
	Diametric pitch threads	DP	45kinds 1/4-56
Tailstock	Diameter of quill	mm	φ75
	Max. travel of quill	mm	150
	Taper of quill (Morse)		Morse No.5
Motor	Main motor power	kW	7.5
	Cooling pump motor power	kW	0.15
Others	Length	mm	2382/2632/3132/3632/4632
	Width	mm	975
	Height	mm	1270		1350
	Weight	kg	2100/2300/2500/2900		2200/2400/2600/3000
